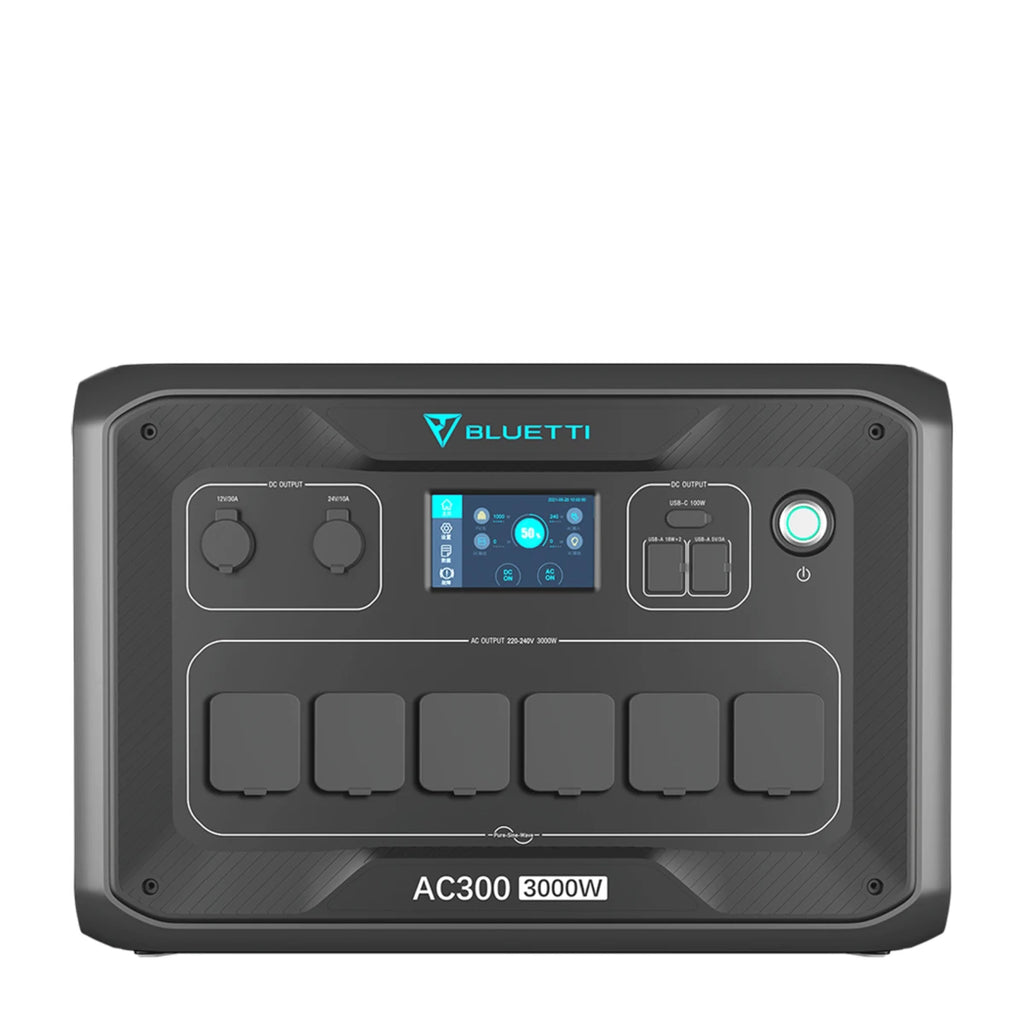

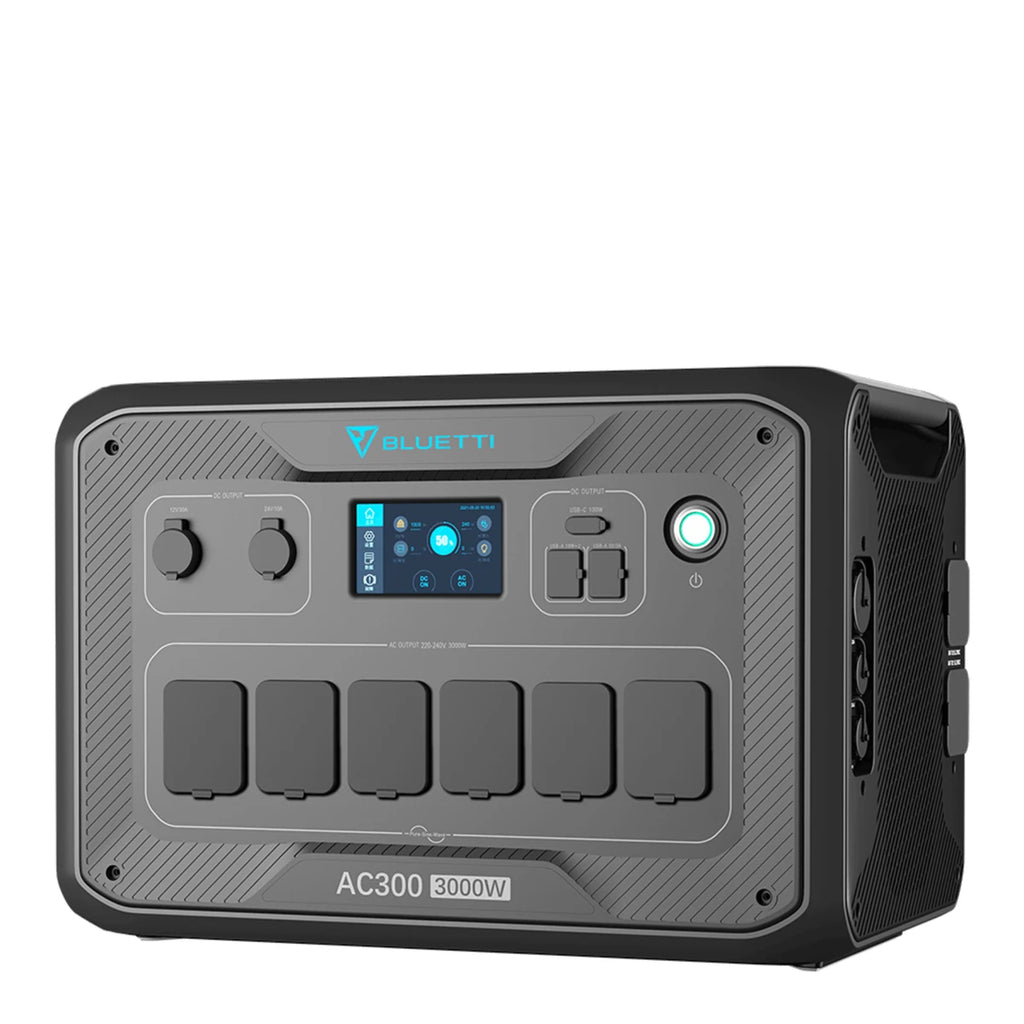

Bluetti AC300 Modular Inverter Unit | 3000W Solar Backup – Requires B300 Battery
The Bluetti AC300 is a modular inverter unit delivering 3000W of pure sine wave AC power (6000W surge). Designed for flexible energy solutions, it requires at least one B300 battery module (3072Wh) to operate, expandable up to 12288Wh with four B300 units.
Key Features:
-
Modular Design: Customize your power system by adding up to four B300 batteries.
-
High Power Output: 3000W continuous AC output with a 6000W surge capacity.
-
Versatile Charging: Supports AC, solar (up to 2400W), and car charging inputs.
-
Smart Control: Monitor and control via the Bluetti app through Wi-Fi or Bluetooth.
-
Comprehensive Outputs: Includes 6× AC outlets, USB-A, USB-C PD 100W, 12V/30A RV port, and wireless charging pads.
Applications:
Ideal for home backup, off-grid living, RVs, and emergency power needs.
Note: The AC300 does not contain an internal battery and must be paired with at least one B300 or B300S or B300K battery module.
❓ Can the Bluetti AC300 work with the B300S battery?
Yes, the Bluetti AC300 is compatible with the B300S battery module, but with some important limitations to consider:
-
✅ Connection Requirement: You must use a P150D to P090D adapter cable to connect the B300S to the AC300. （https://de.bluettipower.eu/products/bluetti-p050d?_pos=13&_sid=285b4a118&_ss=r）
-
⚠️ Functionality Limitations: While the basic charging and discharging functions work, some advanced B300S features—such as the self-heating function—will not be supported when used with the AC300.
-
⚠️ App Control Note: The B300S may appear as a generic battery in the Bluetti app when paired with the AC300, and some battery status details might be limited.
Conclusion:
You can safely combine the AC300 with a B300S for power supply, but for full feature support, the B300S is best paired with the AC500.
