Description

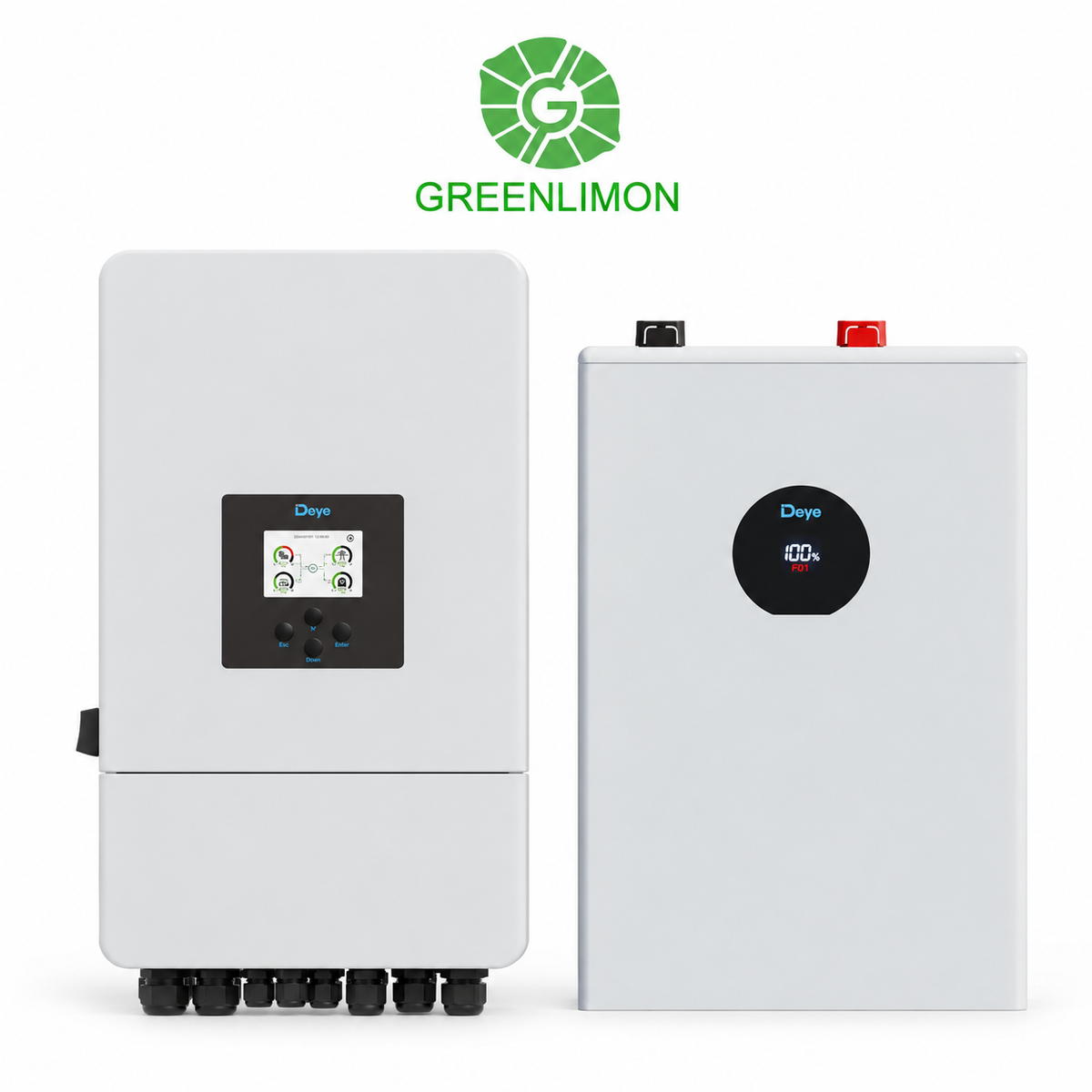

This bundle combines the Deye SUN-5K-SG05LP3-EU-SM2 three-phase hybrid inverter with one Deye SE-F5 Pro low-voltage LiFePO₄ battery.
Designed for professionally installed residential PV systems, it provides a foundation for solar generation, battery storage and energy management. Backup operation is available with an appropriately designed and configured installation.
What Is Included?
-

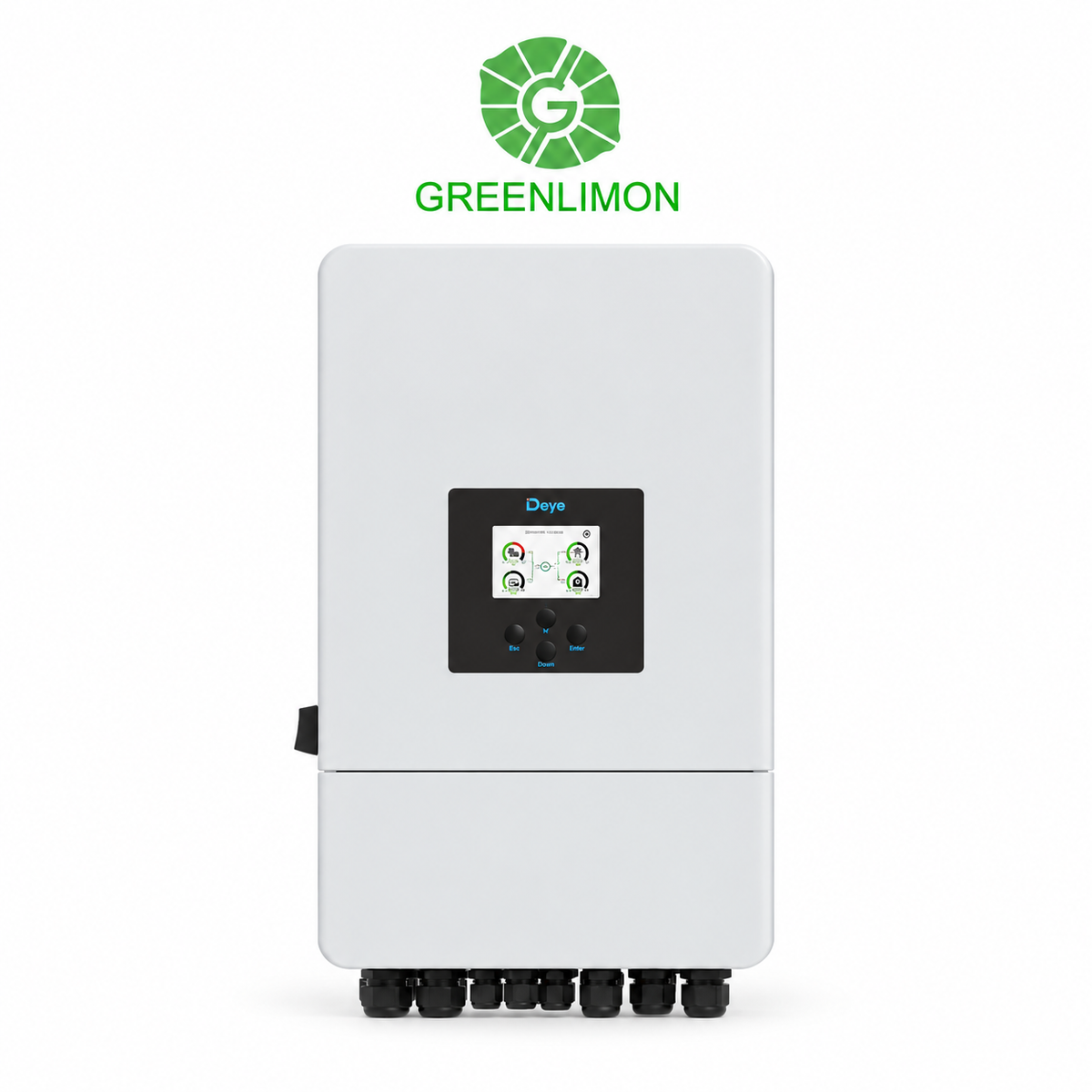

1 × Deye SUN-5K-SG05LP3-EU-SM2 three-phase hybrid inverter, rated at 5 kW
-
1 × Deye SE-F5 Pro LiFePO₄ battery, with 5.12 kWh nominal energy capacity
Solar panels and installation services are not included.
Hybrid Inverter Features
-
Three-phase output: 5 kW rated AC power.
-
Two MPPT trackers: For appropriately designed PV string configurations.
-
Low-voltage battery connection: Supports compatible 48 V-class battery systems.
-
Flexible integration: Supports AC coupling for suitable existing PV installations.
-
Scheduled energy management: Six configurable battery charging and discharging time periods.
-
Grid-connected and off-grid operation: Subject to system design, configuration and applicable requirements.
SE-F5 Pro Battery Features
-
5.12 kWh nominal energy: 51.2 V, 100 Ah.
-
LiFePO₄ chemistry: For stationary solar energy storage.
-
Integrated BMS: Monitors and manages battery operation.
-
CAN and RS485 communication: For integration with compatible equipment.
-
Expandable storage: Additional batteries may be connected in accordance with manufacturer requirements.
Key Specifications
| Specification | Value |
|---|---|
| Inverter model | SUN-5K-SG05LP3-EU-SM2 |
| Rated inverter AC power | 5 kW |
| AC connection | Three-phase |
| Battery model | SE-F5 Pro |
| Battery chemistry | LiFePO₄ |
| Nominal battery energy | 5.12 kWh |
| Nominal battery voltage | 51.2 V |
| Battery capacity | 100 Ah |
| Approximate battery weight | 44 kg |
| Battery dimensions, W × H × D | 404 × 547 × 141 mm |
The 5 kW inverter rating describes power; the 5.12 kWh battery rating describes stored energy. Actual usable energy and available power depend on operating limits, settings, temperature and system conditions.
Solar Panels Also Available
We also supply solar panels, including Jolywood 500 W bifacial glass-glass modules, available separately. Contact us for a quotation based on your required quantity.
Jolywood Niwa Black 500 W bifaziales Glas-Glas-Solarmodul
PV module selection and string configuration must be checked against the inverter’s electrical limits.
Collection or Delivery
Collection is available by prior appointment from:
Greenlimon Technologies GmbH
Mosaikweg 28
53489 Sinzig, Germany
If you choose to pick it up yourself, you will receive a €100 discount.（The discout is only for the set, not for the SUN-5K-SG05LP3-EU-SM2 ）
Please confirm destination eligibility, delivery charges, timing and unloading arrangements before ordering.
Installation and Compatibility
This is not a plug-in balcony solar kit. Professional installation, electrical connection and commissioning are required. We do not provide installation services.
Backup power requires suitable wiring and system configuration; purchasing this bundle alone does not provide automatic whole-home backup. Final compatibility, firmware requirements and accessory requirements must be confirmed before installation.
VAT Information
For qualifying supplies in Germany, 0% VAT may apply under Section 12(3) UStG. Eligibility depends on the statutory conditions, not solely on whether the buyer is a private individual or a business. Where the conditions are not met, the applicable VAT will be charged.
Need Help Choosing?
Contact us with your existing equipment, intended application, required solar panels and preferred collection or delivery option. We can clarify the proposed scope of supply before you order.
The prices shown do not include VAT. Private customers and eligible business customers can order directly. If you do not qualify for the PV tax exemption, please register as a business customer or contact us at Info@greenlimon.shop to pay the 19% VAT. Details regarding the legal regulations can be found in the "Photovoltaik Steuerhinweis Greenlimon GmbH" document.
