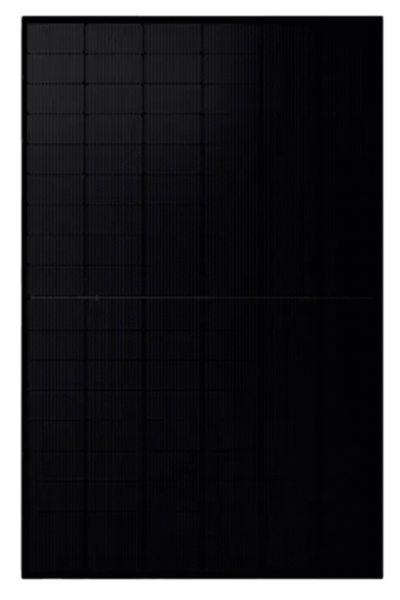

Jolywood Niwa Black 500 W Bifacial Glass-Glass Solar Panel
The Jolywood Niwa Black JW-HD108N-R2-500 combines 500 W rated front-side output with n-type J-TOPCon cell technology and a bifacial glass-glass construction. Its black anodised aluminium frame and ultra-thin busbars provide a clean appearance, while the transparent glass-glass design allows the rear side to capture reflected sunlight.
Designed for photovoltaic installations where electrical compatibility, mounting requirements and site conditions have been checked, this module offers 22.5% efficiency under Standard Test Conditions.
Key features
-
500 W rated output: Front-side nominal power measured under Standard Test Conditions.
-
N-type J-TOPCon technology: Designed for low light-induced degradation and reliable long-term performance.
-
Bifacial generation: The rear side can contribute additional output when reflected light reaches it.
-
Glass-glass construction: 2.0 mm heat-strengthened glass on both the front and rear.
-
Black frame: A neat finish for visually coordinated PV installations.
-
Power temperature coefficient of −0.280%/°C: Output decreases as cell temperature rises; this coefficient describes that change.
-
IP68 junction box: Equipped with three bypass diodes.
-
Manufacturer warranty: The datasheet specifies a 25-year product material and workmanship warranty and a 30-year linear performance warranty, subject to the manufacturer’s warranty terms.
Technical specifications
| Specification | Value |
|---|---|
| Manufacturer | Jolywood |
| Model | JW-HD108N-R2-500 |
| Rated front-side power, Pmax | 500 W |
| Module efficiency | 22.5% |
| Maximum power voltage, Vmp | 33.50 V |
| Maximum power current, Imp | 14.92 A |
| Open-circuit voltage, Voc | 39.03 V |
| Short-circuit current, Isc | 15.78 A |
| Cell count | 108 |
| Dimensions | 1960 × 1134 × 30 mm |
| Weight | 27.3 kg |
| Front/rear glass | 2.0 mm / 2.0 mm heat-strengthened glass |
| Frame | Anodised aluminium alloy, black |
| Junction box | IP68, three bypass diodes |
| Cable cross-section | 4.0 mm² |
| Cable length stated in datasheet | Positive 1300 mm / negative 1300 mm |
| Maximum system voltage | 1500 V DC (IEC) |
| Maximum series fuse rating | 35 A |
| Operating temperature | −40°C to +85°C |
| Power temperature coefficient | −0.280%/°C |
| Nominal operating cell temperature | 45 ± 2°C |
| Bifaciality | 80%, tolerance ±5% |
| Static load stated in datasheet | Front 5400 Pa / rear 2400 Pa |
Electrical ratings are measured at STC: irradiance 1000 W/m², cell temperature 25°C and AM1.5. Actual output depends on sunlight, temperature, orientation, shading and installation conditions. Bifaciality is a rear-to-front rating ratio, not a guaranteed 80% increase in energy yield.
Manufacturer performance warranty
The datasheet states a maximum first-year degradation of 1.0%, followed by 0.40% annual degradation, with a warranted output level of 87.4% at year 30. Warranty coverage and claims are governed by the manufacturer’s applicable terms.
Pickup information — please read before ordering
This product is available exclusively for collection from our warehouse. We do not offer parcel shipping, freight shipping or delivery for this item.
Pickup location:
Greenlimon Technologies GmbH
Mosaikweg 28
53489 Sinzig, Germany
Please arrange your collection time with us before travelling. Bring a suitable vehicle and appropriate padding and securing equipment. Each panel measures approximately 1.96 × 1.134 metres and weighs 27.3 kg.
Installation and compatibility
This listing is for one solar module, not a complete ready-to-use solar system. Check the inverter’s input voltage, current limits and connector compatibility before installation. Mounting hardware and any additional components required for your installation must be selected separately.
