We still have a small quantity of LSW-3-C, LSW-5, and LS4G-4-C models in stock.

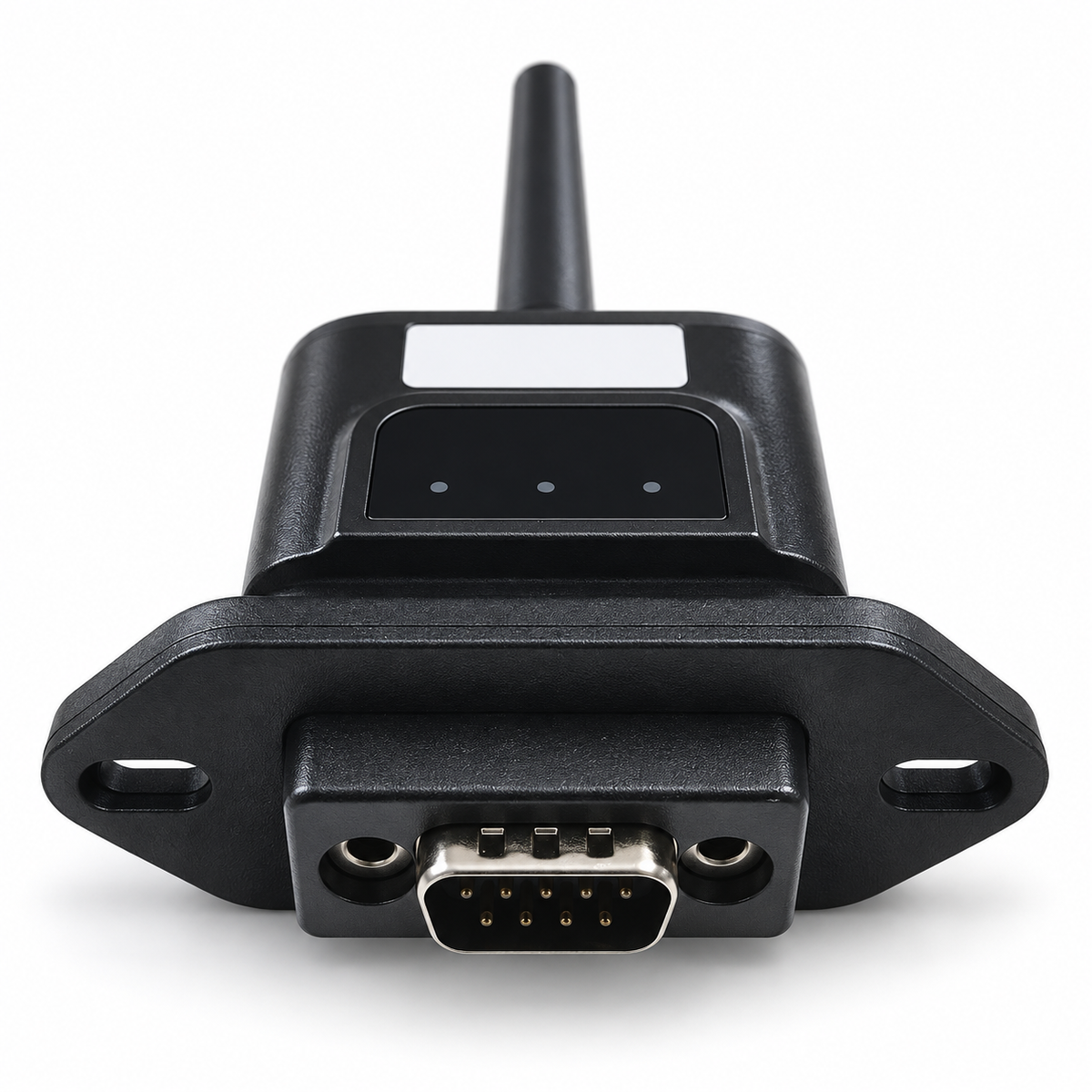

LSW-3 Wi-Fi Stick Logger for Compatible Deye Inverters
Monitor your solar installation with the LSW-3-C Wi-Fi Stick Logger. It connects a compatible Deye inverter to your Wi-Fi network and transfers operating and energy generation data to the SOLARMAN monitoring platform.
View the available system data through the SOLARMAN Smart app or web portal, at home or on the go.
Key Features
-
Wireless connectivity: Connects to the internet through an existing 2.4 GHz Wi-Fi network.
-
Solar system monitoring: Access operating and energy generation data through SOLARMAN.
-
External Wi-Fi antenna: Enables wireless communication with your router.
-
Inverter-powered: Draws power directly from the compatible inverter, with no separate power adapter required.
-

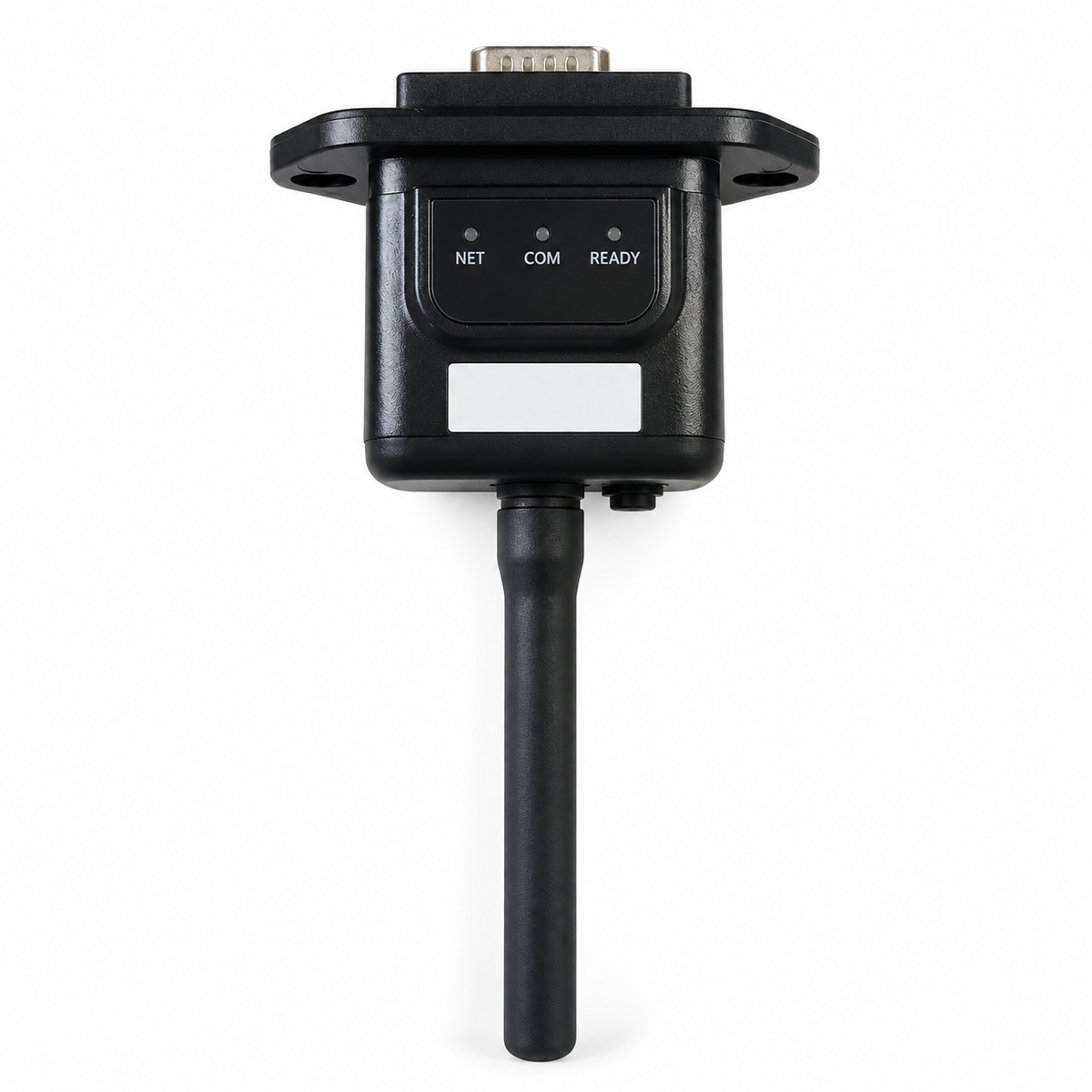

Status indicators: NET, COM and READY LEDs help you check connectivity and operating status.
-
Compact design: Connects directly to the inverter’s matching logger port.
Product Details
| Technical Specifications | LSW-3 |
|---|---|
| Product Model | LSW-3 |
| Remote Communication Interface | Wi-Fi |
| Operating Frequency | 2.142–2.484 GHz |
| Satellite Positioning | Not supported |
| Antenna | External Wi-Fi stick antenna |
| Data Interface | RS485 / RS232 / TTL |
| Operating Voltage | DC 4.7–15 V |
| Power Consumption | 1.5 W |
| SIM Card | Not required |
| Memory | 2M Flash (2M–16M optional) |
| Operating Temperature | −40 °C to +85 °C |
| Operating Humidity | < 90% (non-condensing) |
| Number of Connections | 1 |
| Serial Communication Rate | 1,200–115,200 bps, configurable |
| Data Collection Interval | Default: 5 minutes; configurable from 1–15 minutes |
| User Configuration | App / Network |
| Firmware Upgrade | Remote upgrade |
| Other Functions | Real-time control, data recovery |
Requirements and Compatibility
Requires a compatible inverter with the correct logger port and a 2.4 GHz Wi-Fi network with internet access at the installation location.
Compatibility depends on the inverter model, connector pin assignment and firmware. A physically matching connector alone does not confirm compatibility. Please check your inverter’s exact model before ordering.
If you need assistance, send us the inverter model and a photo of its logger port. We will help you select the appropriate data logger.

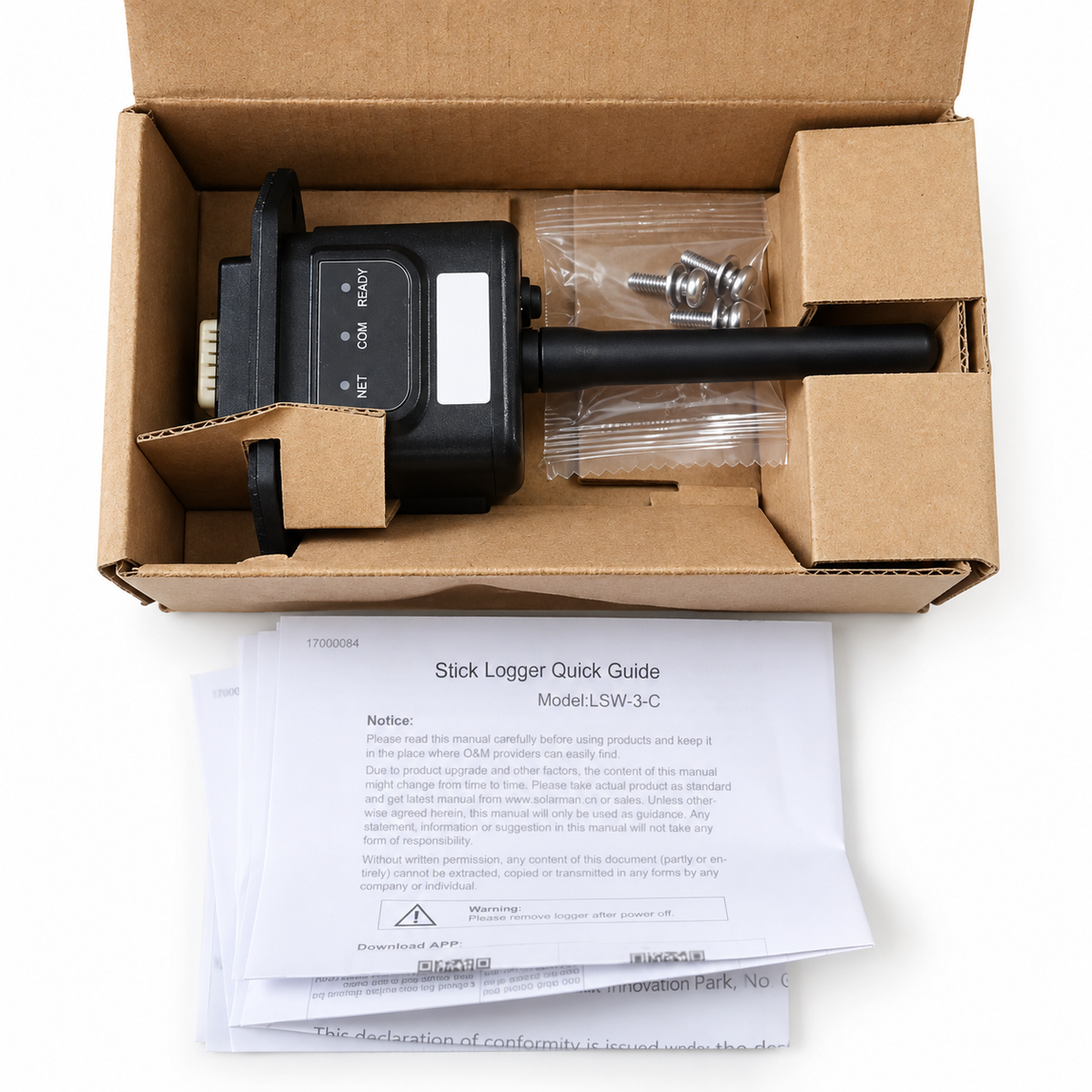

Package Contents
-
1 × LSW-3 Wi-Fi Stick logger with external antenna
-
Mounting screws
-
Quick guide
